Nitrogen Generator HF30P

HF30P Nitrogen Generator

Home > Products > Gas Generators > HF30P Nitrogen Generator

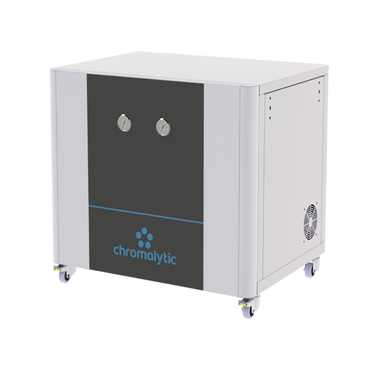

HF30P - Nitrogen Generator with integrated compressor and pneumatic control system



HF30P - the pneumatic version of the HF30A

High nitrogen quality - low costs


  • Nitrogen generator with premium compressor and pneumatic control system
  • Proven 3-stage air filtration and high-quality separation membrane for improved N2 purity
  • Low acquisition and operating costs


Nitrogen Generatorsfor your analytical applications

The HF30P complements the product range with an attractively priced variant for your analytical applications. The nitrogen generator has a pneumatic control system and is ideal for use in laboratories where a dependable and affordable source of nitrogen is essential and is suitable for all laboratories, especially where a high pressure clean air source is not available at the point of use. The device is optimized for the current LC-MS systems (liquid chromatography /mass spectrometry) used increasingly in analytical laboratories.

The heart of the HF30P is a premium oil-free compressor from Dürr Technik. Thanks to its compact dimensions, the nitrogen generator can be placed anywhere. The use of the highest-quality components combined with our know-how in oil-free technology ensure low-maintenance operation and an extremely long service life. This in turn is reflected in the lowest life cycle costs in this class.

Optimally suited for the following applications

Dependable and durable nitrogen source for LC-MS instruments including:

  • Identification of medicinal products, veterinary medicinal products and plant protection products
  • Research and development laboratories
  • Chemical analysis applications
  • Food technology, e.g. determination of acrylamide in foodstuffs

Technical Data

Volume flow at 0 bar

32

l/min

Purity

up to 99.5

%

Max. delivery pressure

7

Bar

Typical dew point

-40

°C

Ambient conditions

+5 to +35

°C

Noise level at PN

59

dB(A) at 1m

Weight

123

kg

Dimensions (L x W x H)

800 x 605 x 695

mm

Nominal voltage

230

V AC

Nominal frequency

50

Hz

Nominal power

1.5

kW

Protection class

IP54

IP

Duty cycle

S1
