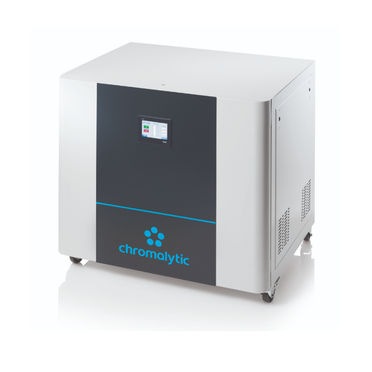

HF30A - Nitrogen Generator with integrated compressor and electrical control system



HF30A - the most reliable LC-MS Nitrogen Generator

Efficient and innovative - designed for your laboratory


  • Ideal for use in laboratories where a dependable and affordable source of nitrogen is essential and is suitable all laboratories
  • Premium compressor with state-of-the-art control
  • Unique nitrogen generation solution for your laboratory including advice, customization and a full installation and support service.


Nitrogen Generators for your analytical applications

The HF30A nitrogen generator is ideal for use in laboratories where a dependable and affordable source of nitrogen is essential and is suitable for all laboratories, especially where a high pressure clean air source is not available at the point of use. Together with its partner Chromalytic, Dürr Technik has combined a premium compressor with state-of-the-art control and purification components to develop a product for business-critical applications. The HF30A is optimized for the current LC-MS systems (liquid chromatography /mass spectrometry) used increasingly in analytical laboratories.

Thanks to its compact dimensions, the nitrogen generator can be placed anywhere. The use of the highest-quality components combined with our know-how in oil-free technology ensure low-maintenance operation and an extremely long service life. This in turn is reflected in the lowest life cycle costs in this class. Thanks to our many years of experience, we can develop unique nitrogen generation solution for your laboratory including advice, customization and a full installation and support service.

Optimally suited for the following applications

Dependable and durable nitrogen source for LC-MS instruments including:

  • Identification of medicinal products, veterinary medicinal products and plant protection products
  • Research and development laboratories
  • Chemical analysis applications
  • Food technology, e.g. determination of acrylamide in foodstuffs

Technical Data

Volume flow at 0 bar

32

l/min

Purity

up to 99.5

%

Max. delivery pressure

7

Bar

Typical dew point

-40

°C

Ambient conditions

+5 to +35

°C

Noise level at PN

59

dB(A) at 1m

Weight

123

kg

Dimensions (L x W x H)

800 x 605 x 695

mm

Nominal voltage

230

V AC

Nominal frequency

50

Hz

Nominal power

1.7

kW

Protection class

IP54

IP

Duty cycle

S1
