ZA4 Zero Air Generator

Home > Products > Gas Generators > ZA4 - Zero Air Generator

ZA4 - Zero Air Generator without integrated compressor

Produces a continuous air flow that is free of organic contaminants

Hydrocarbon content less than 0.05 ppm as Methane
ZA4 delivers 4,000 ml/min at up to 6 bar
Economical and safe source of zero air - no manual replacement of cylinders and no ingress of contaminants
Avoids batch-to-batch variations in air cylinder quality
Without integrated compressor – perfectly matched to the silent compressor station SICOLAB 025 mini

Get A Quote

Do you need a suitable compressed air source?

Chromalytic is part of the Dürr Technik group.

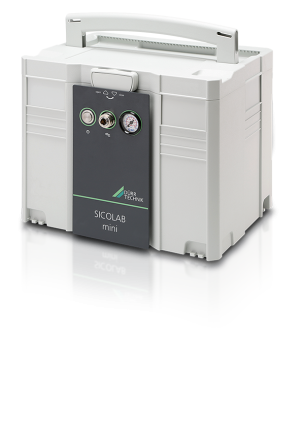

SICOLAB 025 mini - the compressor station from Dürr Technik is ideal as a source of compressed air for the ZA4. SICOLAB 025 mini was specially developed for the laboratory area - without disturbing the usual work processes and concentration. The oil-free plug-and-play compressor unit with integrated carrying handle offers minimum maintenance with maximum flexibility.

Oil-free
Mobile and compact
Very low noise level

FIND OUT MORE ABOUT SICOLAB 025 mini

Zero air Generators for your analytical applications

Chromalytic ZA4 Zero Air Generators provide a clean and stable source of hydrocarbon-free air for the supply of oxidant gas for GC FID, FPD, AES and NPD detectors. The highest purity of air is essential to ensure low baseline noise and optimal signal-to-noise ratio for sensitive and reproducible analysis on your instrumentation.

Hydrocarbon may be present in the air supply from a compressed air source (normally a dedicated compressor or laboratory air system) due to lubricating oil, greases, or from environmental sources such as solvents in use within the laboratory. Compressors located near other equipment, or from external sources such as car fumes also needs to be removed to give the best instrument performance.

Optimally suited for the following applications

Typical applications include providing zero-hydrocarbon air to detectors used in gas chromatography systems, including

GC-FID: Gas chromatography with flame ionisation detector
GC-NPD: Gas chromatography with nitrogen-phosphorus detector
GC-FPD: Gas chromatography with flame photometric detector
GC-AES: Gas chromatography with atomic emission spectrometry

Enquire Here

Technical Data

Volume flow at 6 bar ZA4	4	l/min
Max. delivery pressure	6	Bar
Safety Pressure	9.5/0.95	Bar/MPa
Hydrocarbon (as Methane)	< 0.05	ppm
Nominal voltage	115/230	V AC
Nominal frequency	50/60	Hz
Nominal power	0.5	kW
Nominal current	2.3	A
Protection class	IP54	IP
Ambient conditions	+5 to +35	°C
Noise level at PN	49	dB(A) at 1m
Weight	19	kg
Dimensions (L x W x H)	450 x 550 x 270	mm
